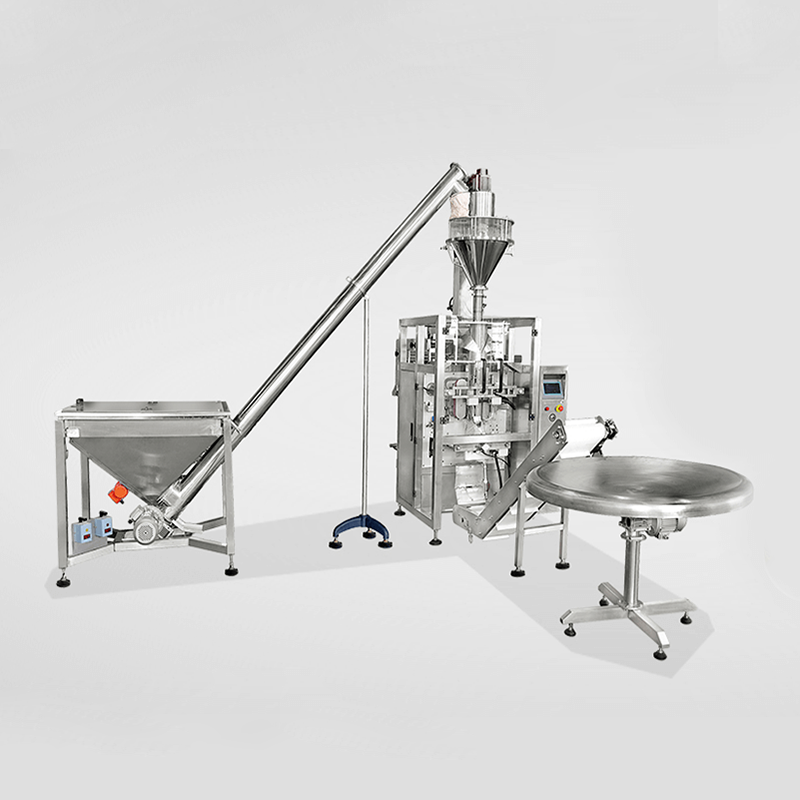

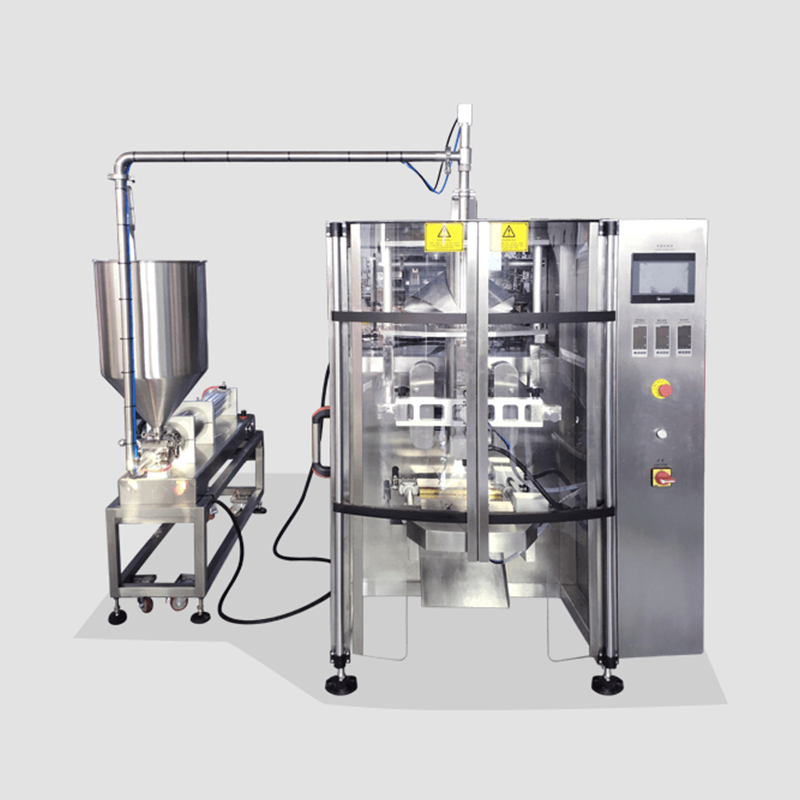

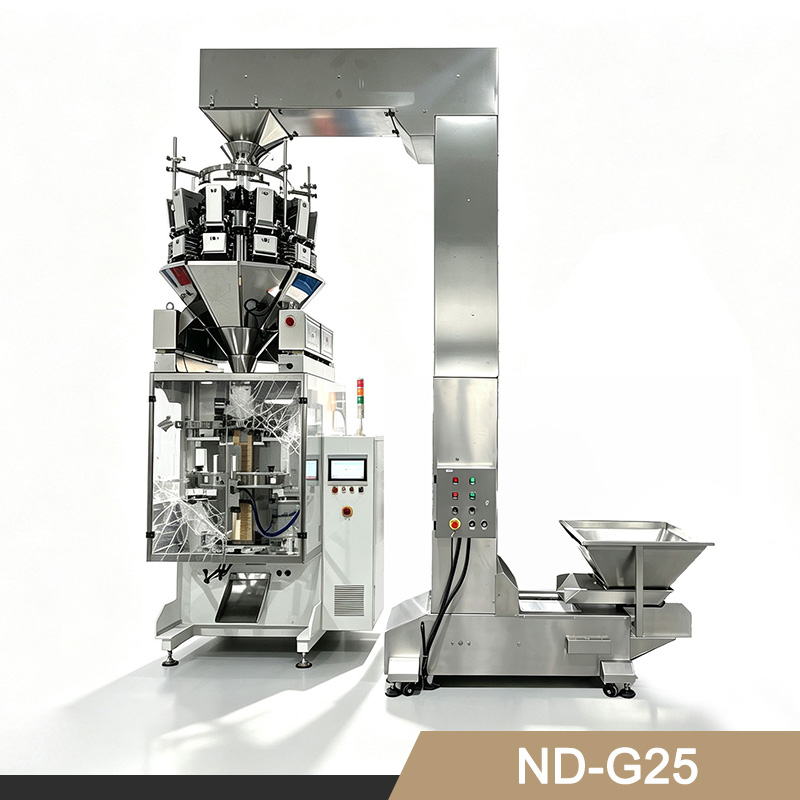

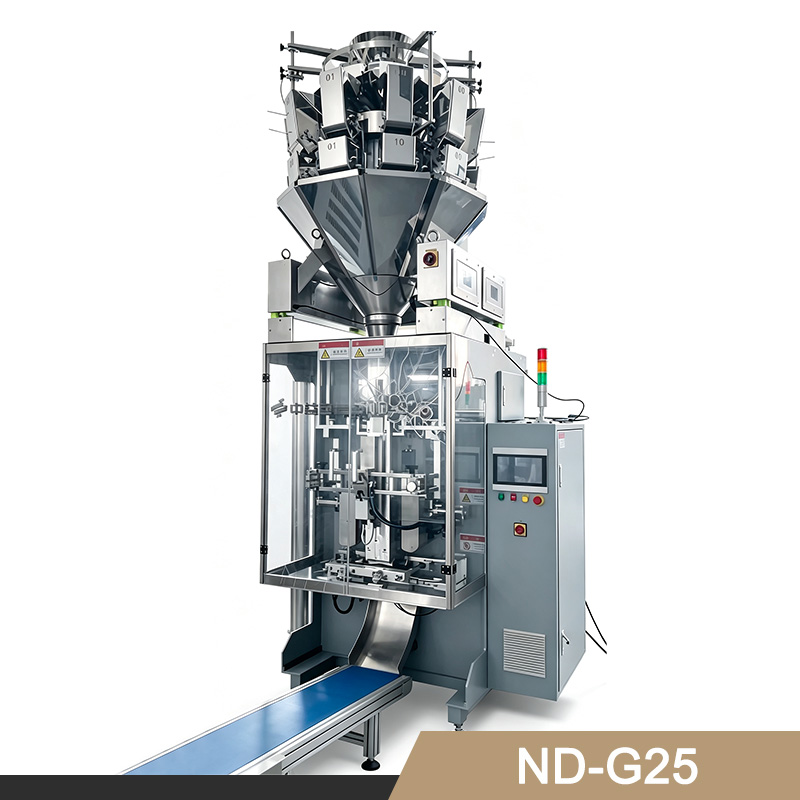

ND-G25 High-Speed VFFS Packaging Machine

ND-G25

One Machine, Endless Possibilities.
A versatile model for both powder and granules. Flexible dosing systems meet diverse packaging needs from beans to powder with stable efficiency.

Packing Speed: 20-30 bags/min
Filling Range: 3000 ml(Max)
Bag Size: L: 150-400 mm, W: 100-245 mm
ND-G25 High-Speed VFFS Packaging Machine

Features of VFFS Packaging Machine

1

Proprietary Degassing Valve Technology

Designed for coffee beans, with automatic valve welding and inspection to ensure flawless seals.

2

Material Saving & Cost Reduction

Packs medium-to-large bulk coffee directly from roll film, significantly cutting material costs.

3

Precise Dosing & Stable Speed Boost

Integrated 10-head scale ensures high weight accuracy and packaging speed.

4

Nitrogen Flushing for Freshness

Nitrogen flushing keeps residual oxygen below 2%, combining with valves for long-term freshness.

5

Indelible Laser Date Coding

Built-in high-precision laser coder ensures clean, indelible codes that won't rub off in transit.

6

Premium Bags & Airtight Seals

Produces clean, attractive bags with high-strength seals that easily pass strict leak and pressure tests.

If you have your own packaging materials or coffee beans, feel free to send them to our factory for a free testing run! We will record the entire process—including nitrogen flushing and temperature control adjustments—and send you the video.

Technical Parameters of VFFS Packaging Machine

Parameter Specification
Packing Speed 20-30 bags/min
Filling Range 3000 ml(Max)
Bag Size: L: 150-400 mm, W: 100-245 mm
Air consumption 0.3 m³/min
Air Pressure ≥0.6MPa
Total Power 220V/380V, 50-60Hz, 5KW
Weight 1400 kg
Dimensions 1377x1926x3484 mm(LxWxH)

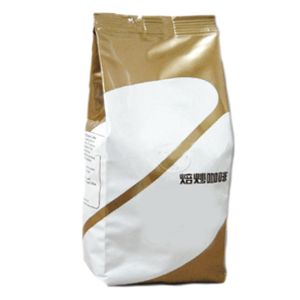

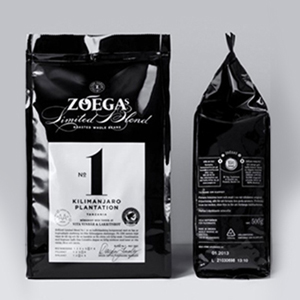

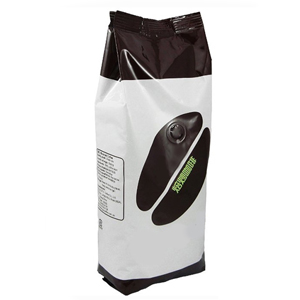

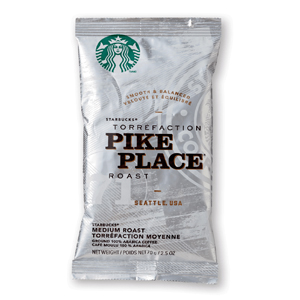

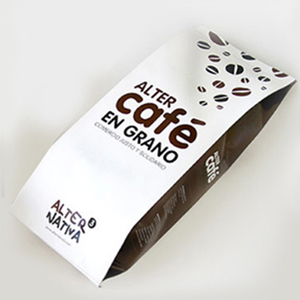

Bag Type of Quad Folded Bag Packaging Machine

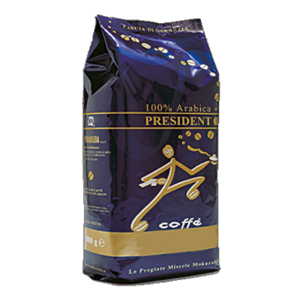

    Bag type: Quad seal bag, Quad seal bag with one way exhaust valve, Edge Folding & Heat Sealing.

    Packaging material: Aluminized film, paper-plastic composite film and various laminated film.

Applications of VFFS Packaging Machine

Versatile Applications

Specialty Whole Bean Packaging
Single-Serve Drip Bag Packaging
Industrial Roastery Batch Packaging

Designed for Specialty Roasters, Premium Coffee Brands, Co-Packers, and Industrial Processing Plants.

The Quad Seal Bag Packaging Machine automates the entire packaging workflow—from vertical bag forming and precise dosing to four-side sealing, degassing valve application, and nitrogen flushing. It brings high-capacity coffee packaging that is exceptionally stable, visually striking, and shelf-ready for premium retail.

Before Your Custom Quad Folded Bag Packaging Machinery Journey Begins

To help us quickly understand your requirements and match you with the optimal solution, please provide the following details

1.Packaging Dimensions & Roll Film Specs
What are the exact pouch dimensions and film specifications? Please provide the Bag Width, Bag Length, and Sealing Margin Width.

2.Target Fill Weight (Grammage per Bag)
What is the target fill weight for each bag? (e.g., 250g / 500g / 1kg)

3.Bag Style & Structural Requirements
What is your required pouch style (e.g., Quad-Seal Bag, Side-Gusset Bag, Stand-Up Pouch, Flat Bottom Bag), and do you have specific requirements for quad/corner sealing, side gussets, or top seal finish?

4.Degassing Valve Specifications
Do you require a one-way degassing valve? If yes, please specify the valve brand or type (e.g., domestic or imported such as Goglio/WIPF) and provide a dimensional drawing or physical sample if available.

5.Packaging Material & Total Thickness
What is the precise material composition and total film thickness? (e.g., PET/AL/PE, PET/VMPET/PE, Kraft Paper Composite, and overall thickness in microns or mil)

Video of VFFS Packaging Machine

ND-G25 VFFS Packaging Machine
