Advanced Drip Coffee Bag Packaging Machine: 90 BPM

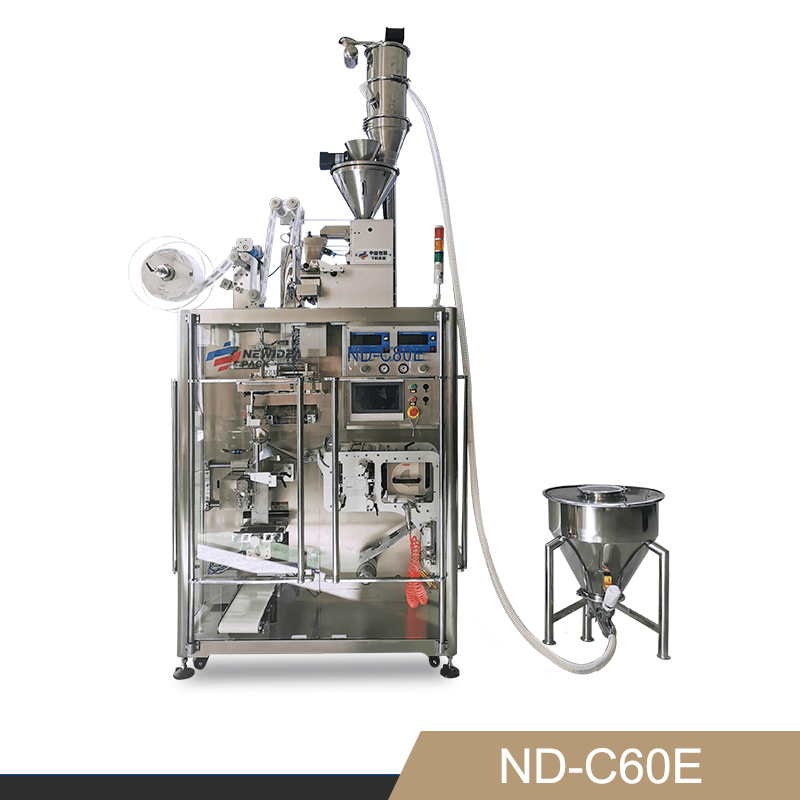

ND-C60E Automatic Drip Coffee Bag Packaging Machine

ND-C60E

Precision Meets Freshness.
Our star model with 60 bpm output. It sets a new benchmark with ≤0.8% oxygen residue, the ideal choice for brands seeking high output and freshness.

Packing Speed: 55-65 bags/min
Filling Range: 10-15g
Inner Bag Size: 90×75mm/80×100mm (Customizable)
Outer Bag Size: 100×125mm/110×130mm (Customizable)
ND-C80E Interactive Features Module

Features of Drip Bag Coffee Packaging Machine

1

55–65 bags/min Consistent Output

Triple Servo Drive: 30% faster than traditional mechanical systems, ensuring significantly smoother operation.

2

Precision Oxygen Control for Maximum Freshness

Ultra-Low Residual Oxygen (≤0.8%): Integrated nitrogen flushing system extends coffee shelf life dramatically.

3

Ultrasonic Sealing & Flavor Preservation

Superior Seal Integrity: Delivers strong, aesthetically pleasing seals while minimizing thermal impact to preserve delicate coffee aromas and flavors.

4

Yaskawa 3-Axis Servo + World-Renowned Brand Electrics

Driven by a Yaskawa 3-Axis Servo system and integrated with electrical components from internationally renowned brands for maximum operational stability.

5

Intelligent Control System

Multi-point real-time operation monitoring with smart fault alarms, seamlessly compatible with production management systems.

6

High-Precision Feeding System

Patented feeding mechanism integrated with precision stirring and vibration ensures packaging accuracy within ±0.2g.

Cut Labor Costs by 40%: The All-in-One Ultrasonic Drip Coffee Packaging Solution Delivering Up to 3,600 Bags/Hour with ≤0.8% Residual Oxygen.

Technical Parameters of Drip Bag Coffee Packaging Machine

Parameter Specification
Packing Speed 55-65 bags/min
Filling Range 10-15g
Inner Bag Size 90×75mm/80×100mm (Customizable)
Outer Bag Size 100×125mm/110×130mm (Customizable)
Sealing Method Heat sealing
Air Pressure ≥0.6 MPa
Total Power 220V/380V、50Hz/60Hz 4.7kW
Weight 1100kg
Dimensions 1416×1085×3146mm

Bag Type of Drip Bag Coffee Packaging Machine

    Inner bag: Drip coffee bag,drip tea bag, flat bag with or without tag and thread.

    Inner bag packaging material: Can be made of non-woven fabric, PET mesh, corn fiber environmental protection material,etc.

    Outer envelope: Three-side sealing(various easy-tear options are available)

    Outer envelope packaging material: Non-woven, PLA, PET mesh, aluminum laminate, kraft/foil pouches, and so on

Applications of Drip Bag Coffee Packaging Machine

Versatile Applications

Specialty Whole Bean Packaging
Single-Serve Drip Bag Packaging
Industrial Roastery Batch Packaging

Designed for Specialty Roasters, Coffee Brands, Co-Packers (OEM/ODM), and Commercial Processing Plants.

The ND-C60E streamlines high-volume drip bag production by integrating 10–15g precision dosing, inner ultrasonic sealing, and outer protective envelope bagging into a single automated workflow. Whether you are scaling up from manual production or expanding contract manufacturing, this machine provides the speed, seal integrity, and low-oxygen preservation required to meet global retail standards.

Before Your Custom Drip Coffee Bag Packaging Machinery Journey Begins

To help us quickly understand your requirements and match you with the optimal solution, please provide the following details

1.Target Fill Weight (Grammage per Sachet)
How many grams of ground coffee will be packed in each drip bag? (e.g., 10g / 12g / 15g)

2.Coffee Grind Size & Consistency
What is the grind size or mesh range of your ground coffee? (e.g., Fine, Medium, Coarse / 400–600 microns)

3.Production Capacity Requirement
What is your required packaging speed or output capacity? (e.g., Target bags per minute [BPM], or daily/monthly target volume)

4.Packaging Material Specification
What type of outer bag material or roll film do you plan to use? (e.g., Pure Aluminum Foil, Metallized Film / PET, Paper-Plastic Composite Film, etc.)
