ND-C80E Product Main Section with Carousel

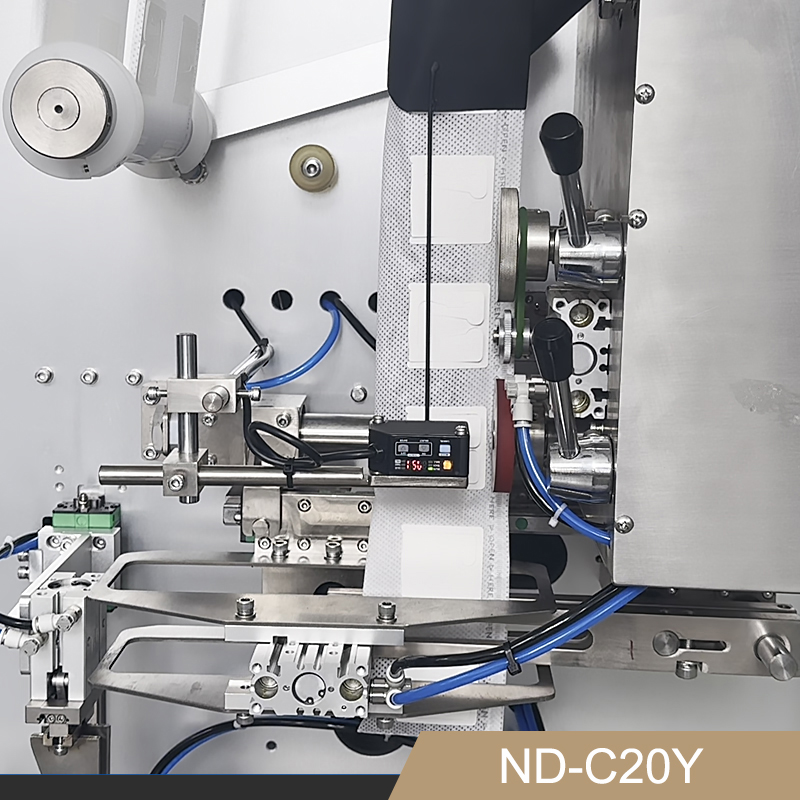

ND-C20Y Pre-made Bag Drip Coffee Bag Ultrasonic Packaging Machine

ND-C20Y

Switch Styles, Stay Fresh.
Supports fast switching between various pre-made drip bags. With a stable 20 bpm output, it helps coffee roasters highlight their brand for small-batch runs.

Packing Speed: 15~20 bags/min
Filling Range: 10-15g
Inner Bag Size: 90×75mm/80×100mm (Customizable)
Outer Bag Size: 100×125mm /110×130mm (Customizable)
ND-C80E Interactive Features Module

Features of Drip Bag Coffee Packaging Machine

1

User-Friendly Operation

User-friendly operation ideal for quick beginner mastery

2

Nitrogen Flushing for Fresh-locking

Integrated nitrogen flushing system to effectively lock in freshness.

3

Flexible Layout

Compact footprint allows easy integration into various floor plans.

4

5-axis Servo + E-cam Synergy

5-axis servo + e-cam synergy: rigid-flexible motion, stability elevated to new heights.

5

Precise Dosing

Equipped with a built-in vibration and stirring device that prevents powder buildup and clumping, ensuring clean and accurate dosing every cycle.

6

Smart Multi-Point Monitoring

Multi-point real-time operation monitoring with smart fault alarms, seamlessly compatible with production management systems.

Specifically engineered for small-batch and multi-format customization, the ND-C20Y drip coffee packaging machine combines pre-made bag four-side sealing with fresh-locking nitrogen flushing, allowing you to easily handle frequent format changes and build a differentiated brand image with exceptional agility and efficiency!

Technical Parameters of Drip Bag Coffee Packaging Machine

Parameter Specification
Model ND-C20Y
Packing Speed 15-20 bags/min
Filling Range 10-15g
Inner Bag Size 90×75mm/80×100mm (Customizable)
Outer Bag Dimensions 100×125mm /110×130mm (Customizable)
Sealing Method Ultrasonic Sealing
Air consumption ≥0.6MPa,0.3m³/min
Power Supply 220V/380V、50Hz/60Hz 3.2kW
Weight 500kg
Dimensions 1450×750×2050mm

Bag Type of Drip Bag Coffee Packaging Machine

    Inner bag: Drip coffee bag,drip tea bag, flat bag with or without tag and thread.

    Inner bag packaging material: Can be made of non-woven fabric, PET mesh, corn fiber eco-friendly material material,etc.

    Outer envelope: Pre-made Bag

    Outer envelope packaging material: paper/aluminum/plastic, plastic/aluminum/plastic ,etc.

Applications of Drip Bag Coffee Packaging Machine

Versatile Applications

Specialty Whole Bean Packaging
Single-Serve Drip Bag Packaging
Industrial Roastery Batch Packaging

Ideal for boutique coffee shops, specialty roasters, and emerging brands

This machine effortlessly accommodates small-batch production and flexible packaging changeovers for limited-edition flavors or customized gift sets. It also serves as an efficient solution for coffee facilities to conduct new product R&D, market sample testing, and multi-specification packaging iterations with total versatility.

Before Your Custom Drip Coffee Bag Packaging Machinery Journey Begins

To help us quickly understand your requirements and match you with the optimal solution, please provide the following details

1.Target Fill Weight (Grammage per Sachet)
How many grams of ground coffee will be packed in each drip bag? (e.g., 10g / 12g / 15g)

2.Coffee Grind Size & Consistency
What is the grind size or mesh range of your ground coffee? (e.g., Fine, Medium, Coarse / 400–600 microns)

3.Production Capacity Requirement
What is your required packaging speed or output capacity? (e.g., Target bags per minute [BPM], or daily/monthly target volume)

4.Packaging Material Specification
What type of outer bag material or roll film do you plan to use? (e.g., Pure Aluminum Foil, Metallized Film / PET, Paper-Plastic Composite Film, etc.)

Media of Drip Bag Coffee Packaging Machine

ND-C20Y Pre-made Bag Drip Coffee Bag Ultrasonic Packaging Machine

The ND-C20Y All-in-One Inner/Outer Bag Packaging Machine offers four-side sealing for pre-made bags and small-batch customized drip coffee bag production. Precisely engineered for premium packaging scenarios requiring frequent format changes, it empowers clients to build differentiated brand identities through agile and efficient flexible manufacturing capabilities.
